Trek CheckOUT SL 5
ML / Dark Star/Dark Web
£4,500.00
Skip to product information
In stock
Trek CheckOUT SL 5
£4,500.00
Taxes included.
Free Delivery Over £150
Finance Available
Cycle to Work Accepted
Warranty
Bike Specifications
Frameset
Frame: 500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12 mm chamfered thru axle, 55 mm travel
Fork: RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 60 mm travel
Fork Brand: RockShox
Rear Suspension Type: RockShox
Rear Suspension: RockShox SIDluxe Ultimate 3P, 170 mm x 27.5 mm
Bottom Bracket: Praxis, T47 threaded, internal bearing
Wheels
Wheels: Bontrager Paradigm Comp 25
Rims: Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width
Rear Hub: Bontrager alloy, sealed bearing, CentreLock, Rapid Drive 108, 142x12, 12 mm thru-axle
Rim Size: 28
Drivetrain
Crank: Shimano GRX RX610, 38T, 170 mm length
Cassette: Shimano XT M8200, 10-51, 12-speed
Chain: Shimano XT M8100, 12-speed
Brakes
Components
Handlebar: Bontrager GR Checkout, 46 cm
Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Seatpost: TranzX JD-YSI36, 100 mm travel, internal routing, 31.6 mm, 328 mm length
Saddle: Verse Short Comp, steel rails, 145 mm width
Rear Carrier: Checkout rear rack

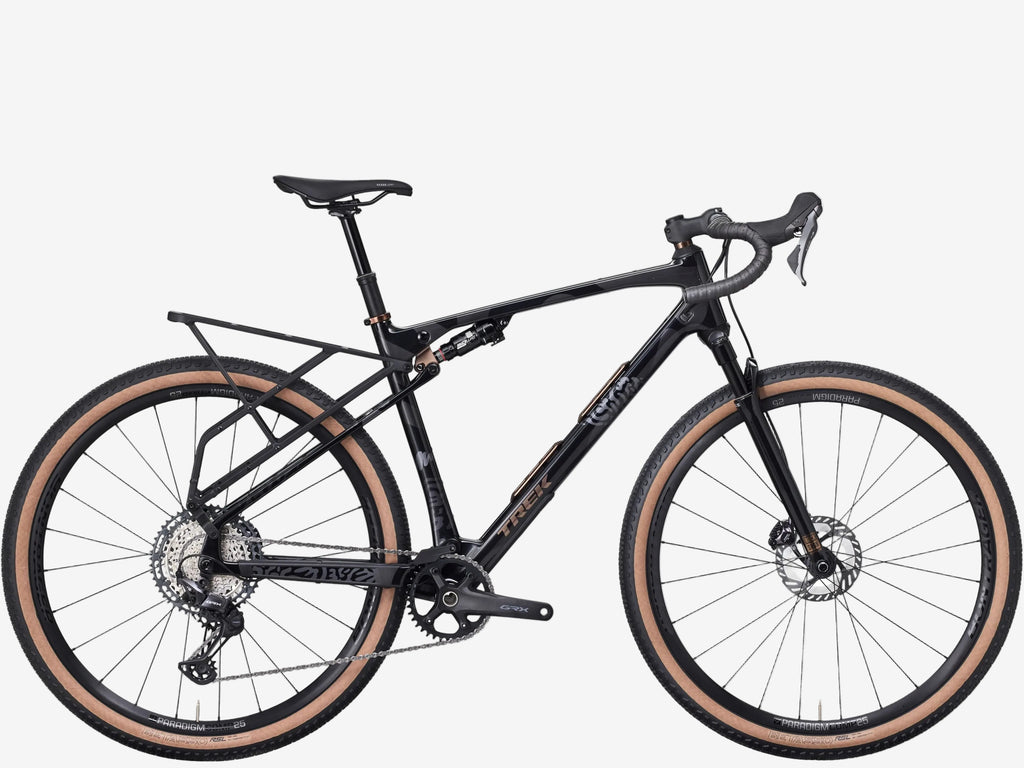

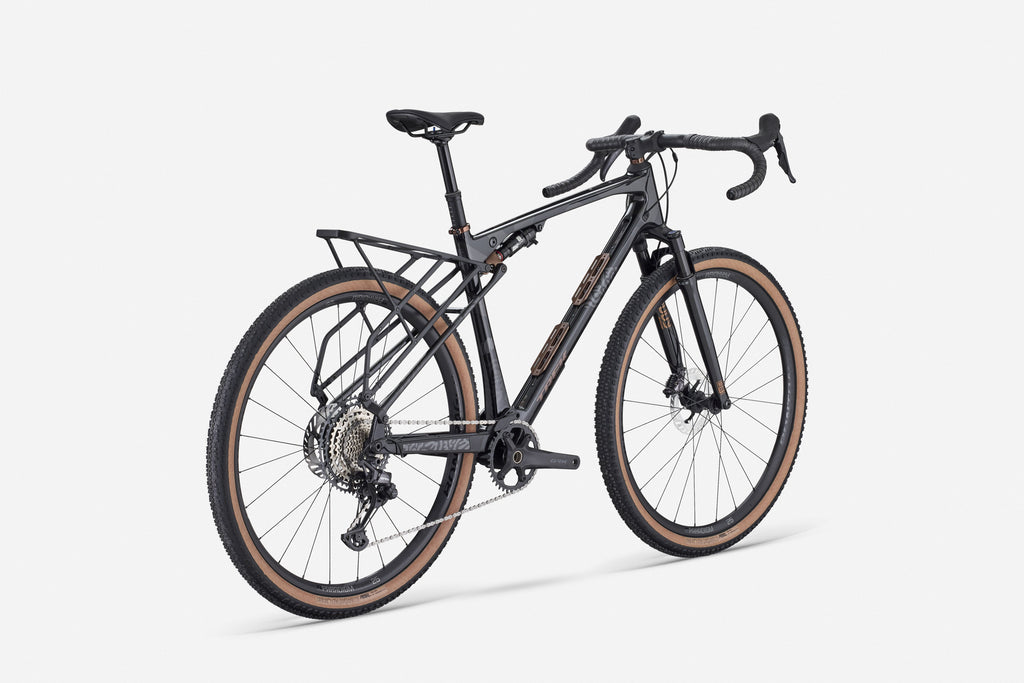

The CheckOUT SL 5 is an adventure-ready full-suspension gravel bike for getting far, far out there. Its carbon frame delivers 55 mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60 mm of travel. It comes ready to explore with Bontrager Paradigm Comp wheels, a 12-speed Shimano GRX drivetrain and TranzX dropper post.
